Sliding Doors

Operators For Sliding Gates:

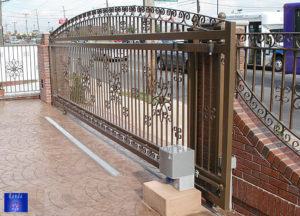

From residential to large industrial gates – Randa (BFT) rack sliding gate operators are custom designed for any requirements. Conceived to operate in all weathers, and tested for millions of trial hours, they can provide continuous-service operation without ever missing a beat. Extremely practical, they offer simple immediate maintenance.

Electromechanical operators for rack sliding gates

  • DEIMOS 800 KIT
  • ICARO MA
  • SP 4000

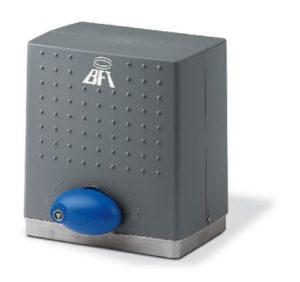

DEIMOS 800 KIT

A 230v electromechanical operator for residential use for leaves up to 800 kg. With electromechanical limit switch and built in braking system and control panel with built in receiver. Operated via remotes or switches. More Information for DEIMOS 800







Specifications

Operator DEIMOS 800
Power Supply 230 Vdc
Absorbed Power 290 W
Max. Leaf Weight 8000 N (~800 Kg)
Leaf Speed 8.5 m/min
Pinion Pitch 44 mm (14 teeth)
Output Revolutions 48 min-1

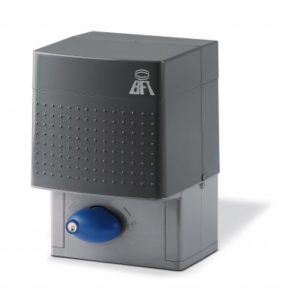

ICARO MA KIT



A 230v electromechanical operator for intensive use for leaves up to 2000 kg. With electromechanical limit switch and electronic slow-down system and control panel with stop / reverse on meeting obstacle (encoder) and built in receiver. Operated via remotes or switches. More information for  ICARO







Specifications

Operator ICARO MA
Power Supply 230 Vdc
Absorbed Power 750 W
Max. Leaf Weight 20000 N (~2000 Kg)
Leaf Speed 9 m/min
Pinion Pitch 4 mm (18 teeth)
Output Revolutions 37 min-1

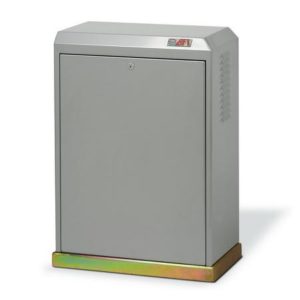

SP 4000 KIT





A 230/400v 3 phase electromechanical operator 400v tri phase for very intensive use for leaves up to 4000 kg. lever operated limit switch (electromechanical) and Sirio Tel control panel and hydrodynamic coupling for soft starts and stops. Operated via remotes or switches. More information for  SP4000







Specifications

Operator SP 4000
Power Supply 3  PHASE 400V
Absorbed Power 1500 W
Max. Leaf Weight 40000 N (~4000 Kg)
Leaf Speed 10 m/min
Pinion Pitch 6 mm (18 teeth)
Output Revolutions 30 min-1
